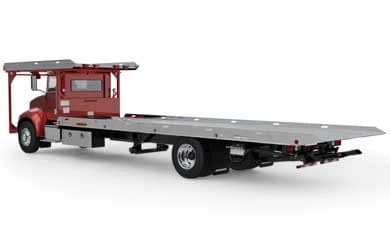

Jerr-Dan’s line of multi-car carriers are now part of the XLP family with a 8.5 Ton structural capacity that lets you haul more than ever and a lower main deck provides more effective deck access. Available in steel and aluminum options, complete with painted and galvanized subframes and a 8.5 Ton structural capacity, each truck is backed by a 5-year structural, 1-year full, and 3-year hydraulic warranty.

Multi-car Carrier Features

  • Dual Sided Manual Free Spool
  • Low Profile Winch System Allows Flat Alignment Of Upper And Lower Deck
  • 3-Rung Fold Away Step Ladder On The Front Structure
  • Dual Remote Winch Release Mounted Under-deck For Convenient Operation While Loading And Unloading
  • Dual Hose Tracking System
  • Upper Deck Winch, Lights, D-rings With Keyslots (Standard)
  • Efficient Load/Unload Angle And Vehicle Access
  • Aluminum Upper Deck Is Strong, Durable And Lightweight
  • Key Slots (Straight “T”, “X” and Angled “T”)
  • Upper Deck Winch Air Free Spool (Standard)
  • Wheel Lift System Option

Multi-car Carrier Specifications

Deck Length
  • 28', 30' Lower
  • 14' Upper
Deck Capacity
  • 20,000 lbs.
  • 15,000 Lower / 5,000 Upper
Deck Width
  • 96"
  • 102"
Winch (Worm Gear)
8,000 lbs.
Minimum RBM (Resisting Bending Moment)
2,000,000 in.-lbs. (1,000,000 in.-lbs. per frame rail)
Usable CA (Cable to Axle Centerline)
  • 208" – 214" CA (186" – 192" CT) (28' deck)
  • 232" – 238" CA (210" – 216" CT) (30' deck)
Optimal Load Angle Frame Height
34" – 41"
Minimum GVWR (Gross Vehicle Weight Rating)
33,000 lbs. (20,000 rear, 12,000 front)
Lift Capacity
3,000 lbs. or 5,000 lbs.
Tow Capacity
7,500 lbs. or 12,000 lbs.
Maximum Extended Reach
58"
Ground Approach Angle
4º
