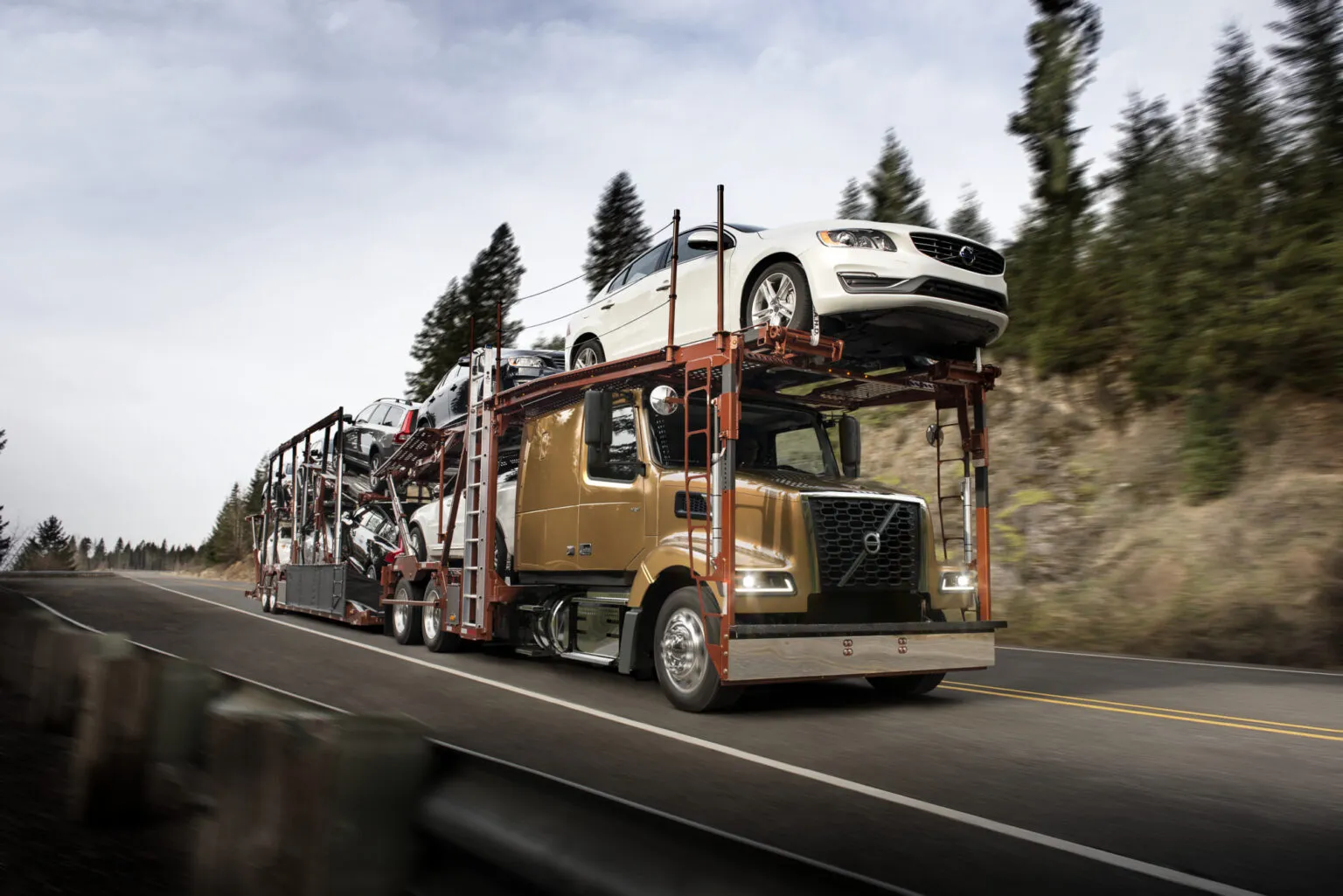

Volvo VAH Daycabs and Sleepers Designed and Built Just for the Car Hauler Industry

A smooth comfortable ride, superior noise suppression and ergonomically-optimized seating are just a few of the premium VAH features designed to enhance driver productivity. The VAH series employs a unique configuration that reduces overall height to provide the ultimate in loading flexibility. Deep-drop front axles, low-height Volvo Air Ride rear suspensions and reduced-height cab options all contribute to lower overall height, offering the flexibility to position a car, pick-up or minivan over the truck’s cab. A clean top-of-frame behind the VAH cab expedites body mounting and eases trailer hookup.

As the premier car hauler dealership in North America, we sell more Volvo VAHs than any other dealership in the country. This allows us to work directly with the factory and share customer feedback that helps shape the design of the VAH – better meeting our customer’s needs.

Our selection of new and used car carrier trucks within the Volvo VAH Series include:

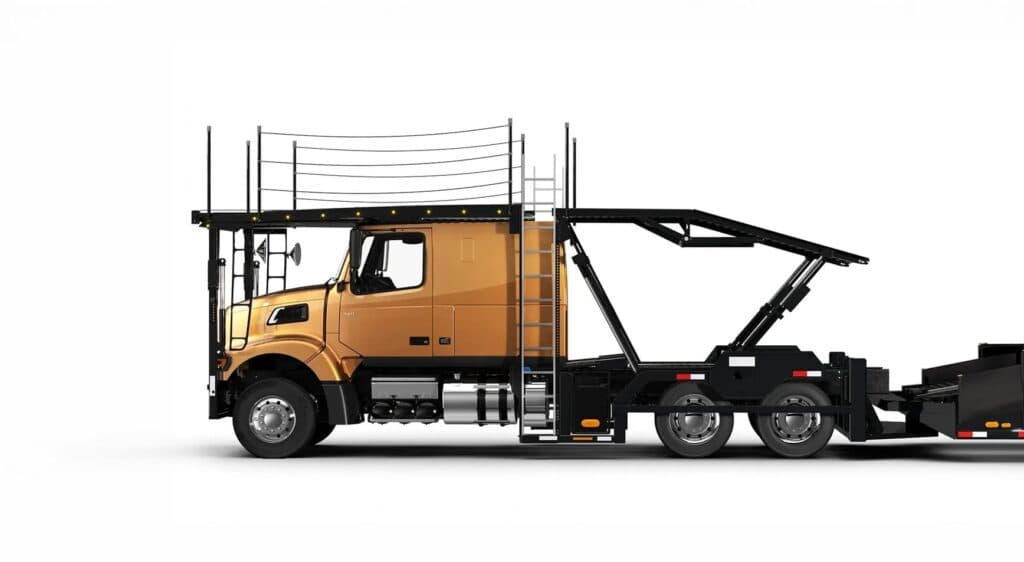

VAH 300 Daycab

The VAH 300 is designed to provide exceptional performance in tight spots thanks to a tight turning radius. Available with a 94.5″ or 97.5″ roof height, the VAH 300 is capable of carrying 11 trucks.

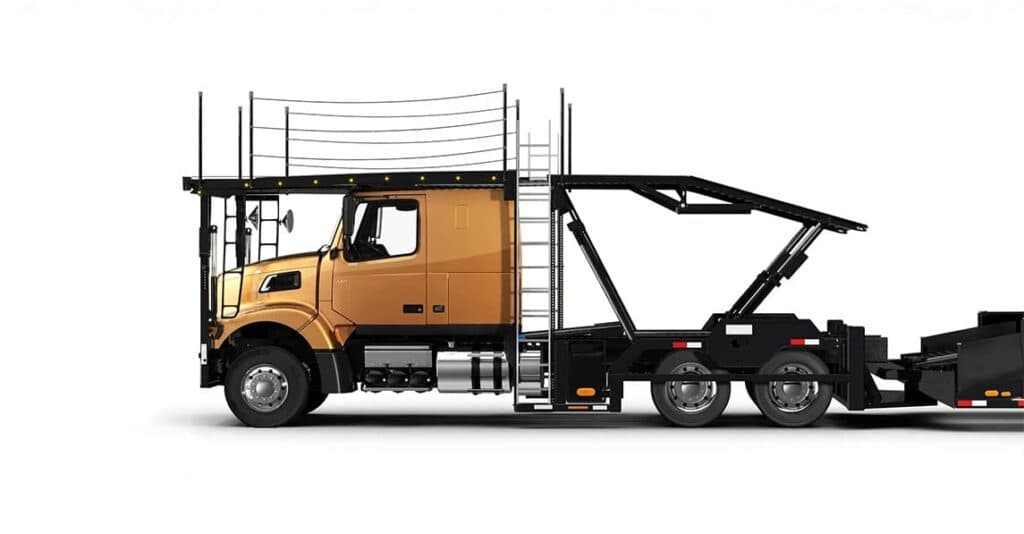

VAH-400 42” Sleeper

Designed for regional hauls, the VAH 400’s 42 inch sleeper provides ample space for drivers to rest while delivering maximum payload, agility, and driver amenities. Available with a 97.5″ or 102.5″ roof height.

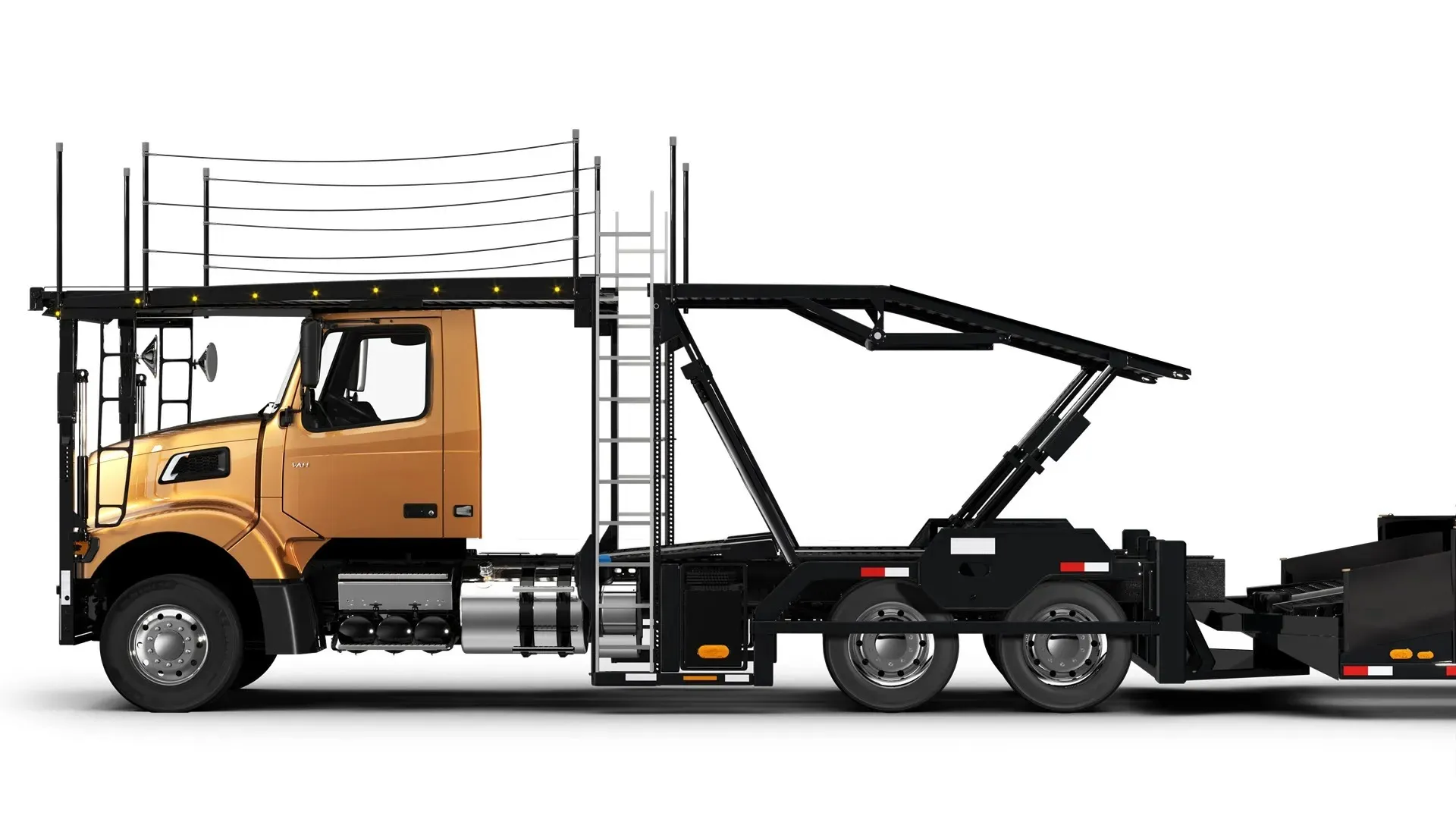

VAH-600 61” Sleeper

For long-haul auto hauler drivers, the VAH 600 is the industry’s premium sleeper. The expansive 61″ sleeper berth features a 36″ mattress, ample storage space, and space for a refrigerator. Available with a 97.5″ or 102.5″ roof height.

We also partner with customers to ensure the truck they’re buying meets every need. Additional specs include:

  • multiple cab heights
  • set forward front axle configuration
  • Volvo I-Shift and Eaton Fuller transmissions
  • quiet and spacious cabs

Powertrain

Volvo D11, Volvo D13

Unless specifically indicated, the values apply to both Volvo D11 and Volvo D13.

Rating
  • Volvo D11 – 325-425 hp / 1,250-1,550 lb-ft.
  • Volvo D13 – 405-500 hp / 1,450-1,850 lb-ft.
Base Engine Configuration
4 Cycle/Inline Six
Emissions
SCR Selective Catalytic Reduction
Aspiration
Sliding Nozzle Variable Geometry Turbocharger
Cam/Valve Configuration
SOHC/4 Valves per Cylinder
Cylinder Head
One Piece Rigid Deck
Injection System
Common Rail
Maximum Fuel Injection Pressure
35,000 PSI (2,400 bar)
Rating Uprateability
Software Only, Throughout Range
Displacement
  • Volvo D11 – 661 cu. in. (10.8 L)
  • Volvo D13 – 780 cu. in. (12.8 L)
Compression Ratio
17:1
Bore & Stroke
  • Volvo D11 – 4.84 x 5.98 in. (123 x 152 mm)
  • Volvo D13 – 5.16 x 6.22 in. (131 x 158 mm)
Cylinder Spacing
  • Volvo D11 – 6.06 in. (154 mm)
  • Volvo D13 – 6.61 in. (168 mm)
Full Dress Dry Weight
  • Volvo D11 – 2259 lbs. (1025 kg)
  • Volvo D13 – 2605 lbs. (1182 kg)
Fuel Specification
Ultra Low Sulfur Diesel, 15 ppm
Fuel Filters
Primary plus Secondary
Total Lube Oil Capacity, qts. (L)
38 (36)
Oil Filtration
Two Full Flow, One Bypass
Oil Drain Interval, Normal Service, miles (km)
60,000 (96,561)*
Oil Specification
Volvo VDS-4.5, SAE 10W-30
FLOCS Oil Drain Kit
Optional
Air Compressor, CFM
Two Cylinder, 31.8
Retarde
Volvo Engine Brake (VEB)
Engine Brake Rating – D11
  • 266 hp @ 1,500 rpm
  • 420 hp @ 2,200 rpm
Engine Brake Rating – D13 Engine
  • 350 hp @ 1500 rpm
  • 500 hp @ 2200 rpm
Engine Brake Weight, lbs. (kg)
25 (12)

Interior

Description

Interior Height
  • VAH 300 – 50" or 52" depending on roof selection
  • VAH 400 – 52" or 57" depending on roof selection
  • VAH 600 – 52" or 57" depending on roof selection
Interior Width
83.5" door to door
Fleet Trim Level
Our Fleet Trim Level is designed for maximum durability to withstand the wear associated with high-use applications. The Fleet Trim level is available in all VAH models.
Express Trim Level
Express Trim Level features a Heron cloth finish throughout the cab, with touches of Wren vinyl for a more refined interior. The Express Trim Level is available exclusively in VAH 300 and 400 models.
Premier Trim Level
The Premier Trim Level offers luxurious options in every corner, including wood grain trim for the dash and cabinetry. The Premier Trim Level is available exclusively in VAH 300 and 640 models.

Headliner

Fleet Trim Level
Heron vinyl with dot matrix
Express Trim Level
Heron cloth
Premier Trim Level
Heron cloth

Back Wall

Fleet Trim Level
Heron vinyl
Express Trim Level
Heron cloth
Premier Trim Level
Longspur cloth with metallic accent

Door Insert

Fleet Trim Level
Wren molded plastic
Express Trim Level
Wren vinyl
Premier Trim Level
Longspur vinyl

Instrument Panel Decorative Trim

Fleet Trim Level
Hex Grain
Express Trim Level
Hex Grain
Premier Trim Level
Wood Grain

Cabinet Trim

Fleet Trim Level
Hex Grain
Express Trim Level
Hex Grain
Premier Trim Level
Wood Grain

Floor Insert Option

Fleet Trim Level
Two
Express Trim Level
Two
Premier Trim Level
Two
