2022 MAC LTT TND8515W/TND8516W

2022 MAC LTT TND8515W/TND8516W

Call For Price

Overview

Location
Stockton

Detailed Specs

Notes

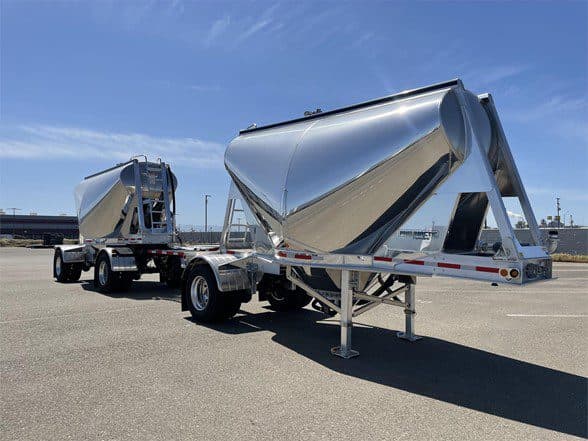

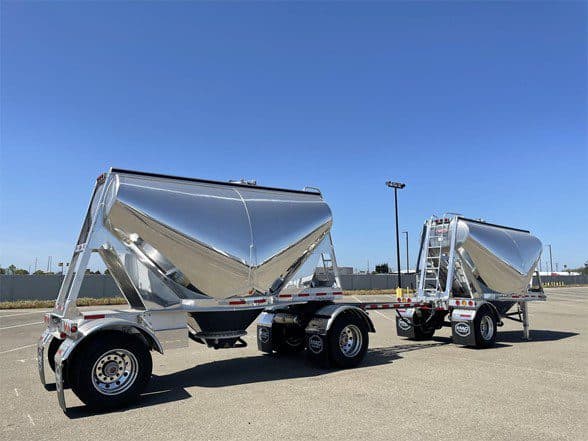

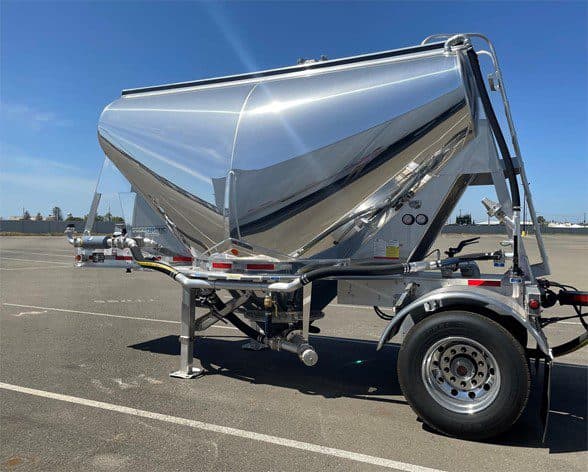

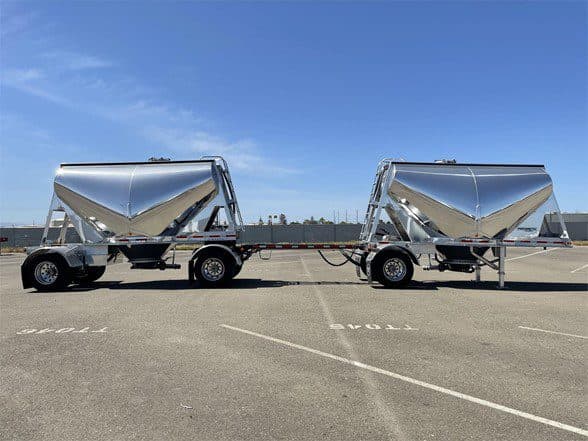

Here is a Brand New Set of 2022 MAC 550 Cubic Foot Aluminum Pneumatic Doubles (non-food grade). Brand new trailers looking for a job. Can you help them? Please call us at TEC Equipment! Product – Dry Bulk (Cement). Front – 1-Axle Semi-Trailer Overall Length 18′-7″. Estimated Weight: 4,100 lbs. Rear – 2-Axle Pull Trailer Overall Length 18′-8″. Estimated Weight: 6,250 lbs. 6,380 lb trailer weight with 56,980 lb payload. VESSEL • Overall Length – 18′-11″ (227″). • Capacity – 550 cubic foot. • Overall Height -12′-1″ (145″). • Overall Width – 8′-0″ (96″). • Operating Pressure – 15 psi. • Vessel Finish – Aluminum Shell • Max. Loading Temp. – 150 degrees Fahrenheit. • Wheelbase – 184″ centerline of king pin to centerline of the rear axle. • Coupler Height – 48″ ground to coupler surface. PIPING / FITTINGS • Lead Hot Air Supply – 3″ sch. 10 alum. pipe with male adapter on a 90° elbow facing up on the street side, check valve behind inlet. Tee aeration at hopper area with 3″ b’fly valve and check valve. Aeration manifold extended to rear for pup operation with 3″ b’fly valve. Line terminates with 3″ male adapter on 45° elbow facing down at the center. • Pull Hot Air Supply – 3″ sch. 10 alum. pipe located under drawbar at the center. Both ends to include a male adapter on a 45° elbow facing down. Hot air continues with 3″ hose through turntable to 3″ sch. 10 aluminum pipe with male adapter on a 90° elbow down. Terminate aeration at hopper area with 3″ b’fly valve and spring type check valve on the street side. • Aeration – Fabric pad aeration with ball valve control. • Top Air Supply – 2″ top air line with (1) 2″ b’fly valve. • Gravity Dump Discharge – 10″ blind flange on the sloped bottom. • 3″ Aluminum Silencer – Located at front of air inlet line. • Manhole Type – (1) 20″ camlatch style opening towards front onto rubber contact pads. Locate lid 18″ rearward of the centerline. (27′-0″ between domes on semi and pull. • Discharge – 5″ alum. discharge Y-branch angles 45° to the street side rear with 5″ female coupler and plug. • Blow Down Line – 2″ hose at the front street side with (1) 2″ b’fly valve and (1) 2″ relief valve set at 15 PSI. ACCESSORIES • King Pin Plate – Welded aluminum • Lead ladder – Bolt-on aluminum at the rear, non-slip steps . • Pull ladder -Bolt-on aluminum at the front, non-slip steps. • Top Walkway – Non-skid tape and full-length toe rails. • Document Holder – Located street side at the rear of front fend • Pressure Gauges – Liquid filled 0-30 psi tank/line pressure. Mounted on rear wing plate with light. • Jump Hose – (1) 3″ hose with female cam-lock fittings. • Lead Hitch – Premier slack reducing coupling style. • Lead Landing Gear – MAC LTT alum. drop tubes mounted on formed alum. pedestal frame.
