Detailed Specs

Make

BWS

Condition

New

Price

34900

Vehicle Category

Trailers - Flatbed / Tag Trailers

Model

20 TON TANDEM NON TILT / RAMP

Year

2022

VIN

2B9B2TM2XNA001451

Axle

Tandem

Composition

Steel

Fixed Axle

Fixed

Floor Type

Wood Floor

Length

384.000000000000

Width

102

Notes

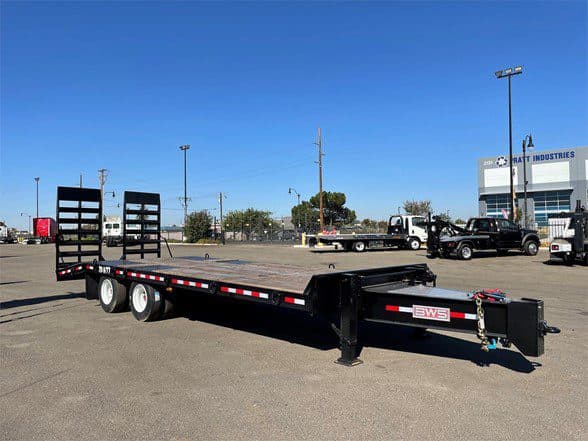

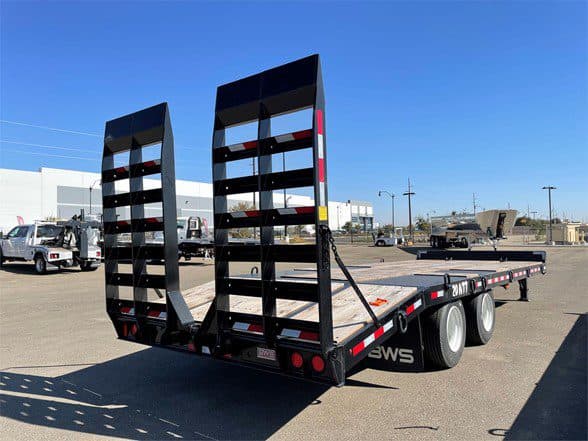

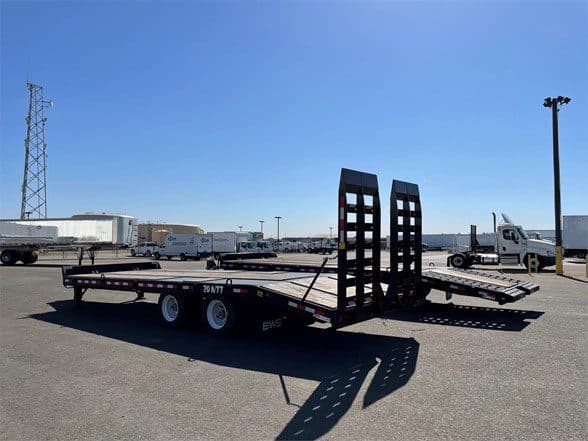

BWS 20 Ton Tandem Non-Tilt Tag Trailer. Overall Length 32 ft. 8 in. Overall Width 102 in. Weight lbs +/- 2% 7,960 Hitch 3 in. pintle eye, adjustable 5 positions 23 1/2 in. to 32 1/2 in. Deck Length 20 ft. Loaded Deck Height 34 in. Floor 1 3/4 in. Hardwood Landing Gear Dual 2 Speed Axles 25,000 lbs Capacity 77.5 in. Track 3/4 in. wall Suspension Hutch 9700 spring ride Tires 235/75R17.5 16 ply Wheels 6.75 x 17.5 Steel Disc – Painted White BEAVERTAIL – Length 5 ft. @ 10-degree slope, Planked in RAMPS – Length 20 in. x 60 in. Spring-assist, self-cleaning, adjustable total width 99 in. max./ 68 in. min. GENERAL SPECIFICATIONS Electrical System Modular, Vapor Proof GROTE Ultra Blue Lights LED CMVSS 108 / FMVSS 108 Front Connector SAE J560 7 Pin Toolbox Full A-Frame mounted with solid bottom and cover Load Securement 4 pairs of D-rings
