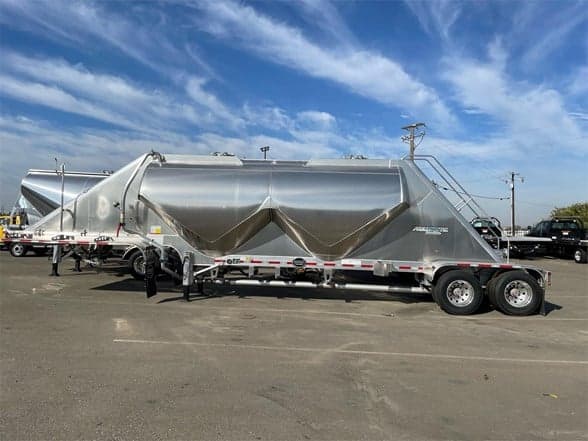

2023 MAC TRAILER MFG TND10611

Detailed Specs

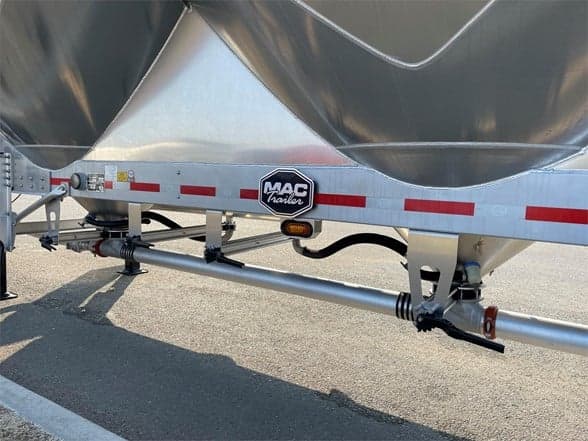

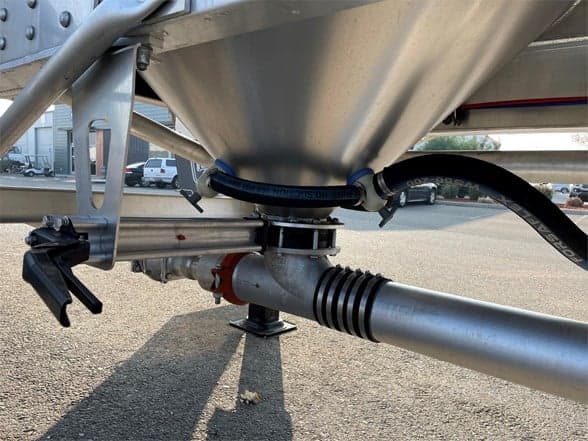

LENGTH 42 FT. WIDTH 102 LOAD PROFILE 72K. CUBIC COMMODITY CEMENT. CUBIC FT CAPACITY 1000. AIR INLET SIZE 3 IN. SCH. 10 ALUMINUM PIPE. AIR INLET LOCATION DRIVER SIDE. CHECK VALVES (2) BTI OPTIMA CHECK VALVES - (1) AT AIR INLET & (1) UP STREAM OF FRONT HOPPER DISCHARGE. CONTROL VALVE HOUSING 3" BTI BLACKMAX BUTTERFLY VALVE. CONTROL VALVE DISK ALLOMAXX DISC. CONTROL VALVE HANDLE TYPE ALUMINUM. CONTROL VALVE HANDLE POSITION MANUAL 10 - POSITION. BLOW DOWN LINE HOUSING 3" BTI BLACKMAX BUTTERFLY VALVE. BLOW DOWN LINE DISK ALLOMAXX DISC. BLOW DOWN LINE SEAT WHITE RUBBER (FOOD GRADE) SEAT. BLOW DOWN LINE HANDLE TYPE ALUMINUM. BLOW DOWN LINE LOCATION DRIVER SIDE FRONT. BLOW DOWN LINE HANDLE POSITION MANUAL 10 - POSITION BLOW DOWN RELIEF PRESSURE 15 P.S.I. VESSEL THICKNESS 0.165 5454-H32 ALUMINUM. TRAILER OPERATION TYPE PNEUMATIC VESSEL FINISH MILLED OPERATING TEMPERATURE 185 F / 85 C. OPERATING PRESSURE 14.7 PSI / 101.35 KPA. LOWER HOPPER CONES WELD-ON 45 DEG (STANDARD) AERATOR FORMAT 3 PER HOPPER (STANDARD). AERATOR TYPE BTI SPIN FLOW AERATION KIT W/ WEAR PLATES AND 2 IN. BTI. BLACKMAXX INDIVIDUAL AERATION CONTROLS AT EACH.. AERATION LOCATION CURB SIDE AERATOR LINE CONTROL 3" BTI BLACKMAX BUTTERFLY VALVE. AERATOR SEAT WHITE RUBBER (FOOD GRADE) SEAT. AERATOR DISK ALLOMAXX DISC. AERATOR HANDLE TYPE ALUMINUM. AERATOR HANDLE POSITION MANUAL 10 - POSITION. TOP AIR PRODUCT & DISCHARGE PRODUCT / DISCHARGE LINE SIZE 5 IN 9/12/22 2:07 pm Page 2 of 3
