Mack Electromobility

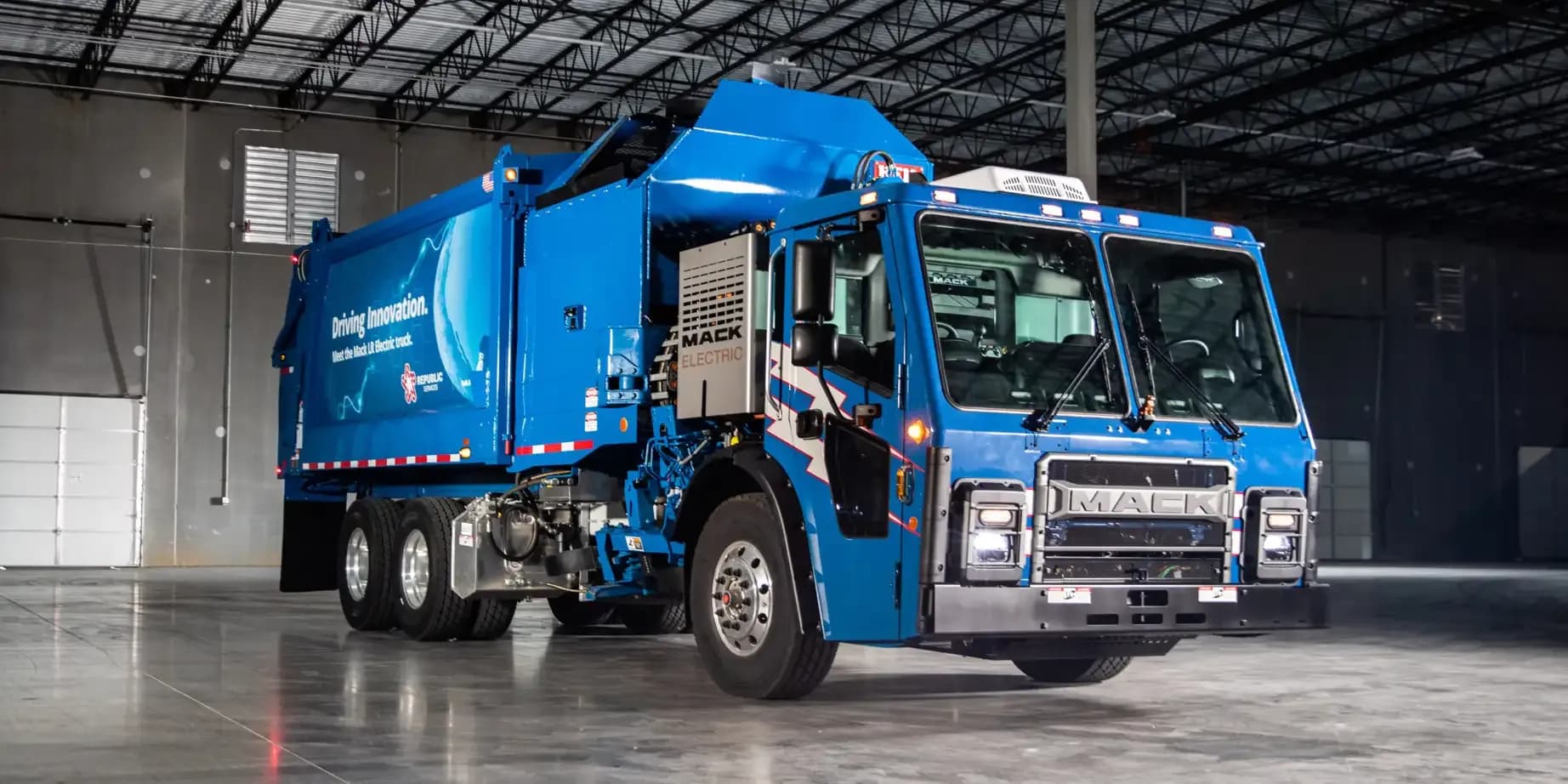

The Mack LR Electric is the first vertically integrated heavy-duty battery electric refuse truck in North America. It delivers the same comfort, visibility and reliability as the diesel-powered LR, but with lower maintenance costs, reduced noise and zero carbon emissions.

Mack LR Electric Benefits

The new Mack LR Electric is the hardest-working, zero-emissions refuse truck in the country. Multiple driving configurations and multiple door designs give drivers more comfort and customization to the task at hand. Additional benefits include:

  • 536 peak hp with up to 4,051 lb/ft torque
  • 2-speed Mack Powershift Transmission
  • Zero Emissions
  • No aftertreatment systems
  • Reduced maintenance
  • Up to 150kW charge power
  • Easy entry and exit with low 17” step height
  • Extended cab for more room
  • Tilt and telescopic steering column
  • Adjustable knee bolsters and armrests
  • New seat positions
  • Integrated air conditioner

Want To Learn More?

Speak to a sales rep about electric trucks and what programs and opportunities you may be able to take advantage of.

Talk To Us

Key Components

Power Source
2 AC motors with 400kW Peak (536 hp) & 334 kW (448 hp) continuous power
Batteries
4 NMC lithium-ion batteries (Lithium Nickel Manganese Cobalt Oxide), 600V, fast charge capability
Transmission
2-speed Mack Powershift 4,051 lb.-ft. peak output torque
Charging System
Up to 150kW charge power with a max current of 200A, 550-750 volts, compliant with SAE J1772
Auxiliary Power
Circuits: 12, 24 and 600V, 260 Amp. Powering PTO, steering assist, pneumatic, and climate systems
Brakes
Two-stage regenerative

Mack LR Electric Specifications

Weight Rating (GVWR)
66,000 lbs.
Axles
  • Mack FXL20 20,000-lb. front axle
  • Mack S462R 52,000-lb. rear axles
  • Mack mRIDETM 46,000-lb. suspension
Service and Training
Supported through Mack dealership network
Comfort
  • Extended cab for more room
  • A tilt and telescopic steering column
  • New seat positions
  • Suspended pedals
  • adjustable knee bolsters and armrests
  • Integrated air conditioner
