Detailed Specs

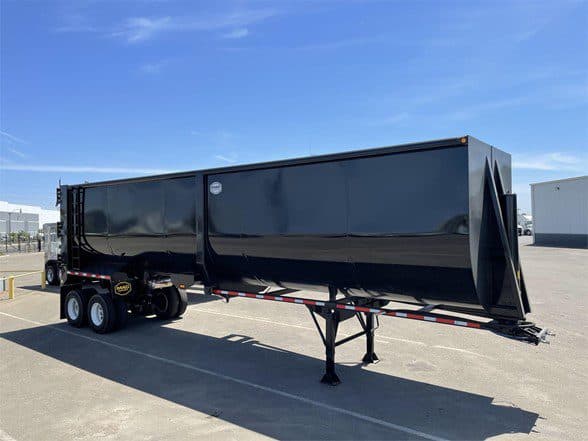

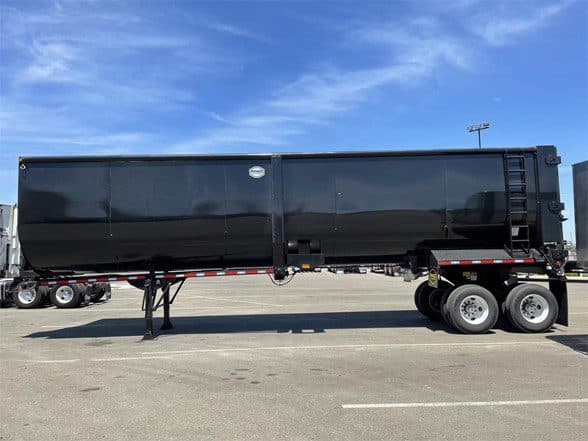

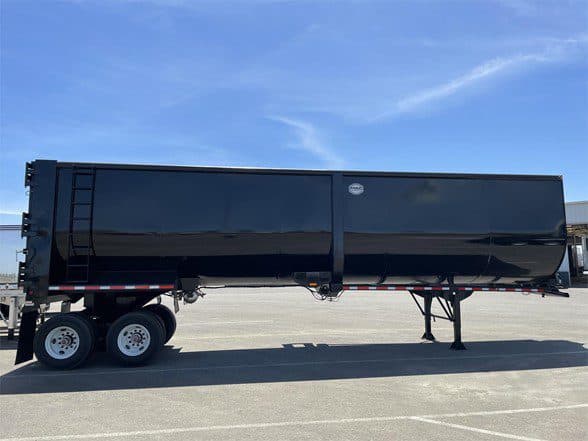

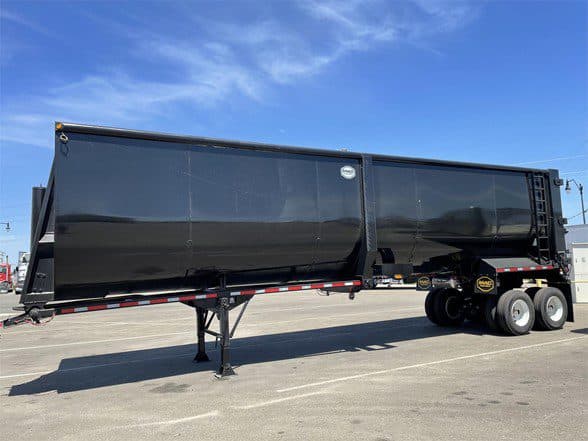

40'X102"x96" STEEL FRAMELESS HALF ROUND. BODY LOAD PROFILE MATERIAL, 80K GVWR BODY STYLE FULL RADIUS HARDOX AR450 FLOOR 3/16 IN. FULL -- FLOOR MATERIAL HARDOX AR450F BODY SEAMS STRAPS ON BOTTOM WALL HEIGHT 100 INCHES TOP RAIL 5 1/2 IN. PIPE -- TOP RAIL SOLID BOLSTER (1) BOLSTER(s) 100" WH x 102" WIDE REAR SKIRTS 10 GA. STEEL OVER SUSPENSION, WELDON BULKHEAD TYPE -- INVERTED HOIST SIDES STEPS D.S. STEEL LADDER AT REAR MODEL - CLOSED TANDEM NO. OF PRIMARY AXLES - 2 SUSPENSION WATSON 50,000 SINGLE POINT - (HD SERIES) AXLE SPACING 50 - Axle Spacing needs to be 50.5” per suspension SUB-FRAME HIGH PEDESTAL AXLES 77.5 IN., AXN 5/8 IN. WALL TP W/ 25K DRESSED LIGHTWEIGHT 3-LEAF 50K SINGLE POINT SUSPENSION & AXLES BRAKES 7 IN. XL, W/ 30-30 CHAMBERS HUB AND DRUM CAST W/ STEEL HUB HP 10 STUD TP, LS,7 IN. TIRES GENERAL RA 11R 22.5 16 PLY WHEELS STEEL HP 22.5X8.25 - WHITE POWDER COATED GATE OPERATION - MANUAL -- HINGE-TYPE SIDE SWING ONLY TARP BRACKET -- TARP CENTER BRACKET FOR FRONT-TO-BACK FLIP TARP
